Running the LCM-LoRA-SDv1-5 Model on MaixPy MaixCAM

Supported Devices

Introduction to the LCM-LoRA-SDv1-5 Model

LCM-LoRA-SDv1-5 is a model that supports text-to-image and image-to-image generation, based on the StableDiffusion 1.5 LCM project. With this model, you can generate conceptual images for artistic creation—simply provide a text description, and the model will generate an image based on it.

Running the LCM-LoRA-SDv1-5 Model on MaixPy MaixCAM

Model and Download Link

MaixPy currently supports LCM-LoRA-SDv1-5. Due to the large size of the model, you need to download the model manually and save it to the /root/models directory.

!! Important !!! Important !!! The model must be saved in the /root/models directory; otherwise, some applications may fail to load it. For example, a valid save path is /root/models/lcm-lora-sdv1-5-maixcam2.

• Memory requirement: CMM memory 1 GiB. For details, refer to the Memory Usage Documentation

• Download link: https://huggingface.co/sipeed/lcm-lora-sdv1-5-maixcam2

For the download method, refer to the instructions in the Qwen documentation

Running the Model with MaixPy

Note: MaixPy version 4.12.3 or above is required for support.

This example demonstrates how to use MaixPy to run the LCM-LoRA-SDv1-5 model for both text-to-image and image-to-image generation.

from maix import sdv1_5

model = sdv1_5.SDV1_5("/root/models/lcm-lora-sdv1-5-maixcam2/ax620e_models")
model.init(img2img=True)
model.refer(prompt="A white dog.", save_path="/root/text2img.jpg")
model.refer(prompt="Replace the dog with a cat.", init_image_path="/root/text2img.jpg", seed=1, save_path="/root/img2img.jpg")

model.deinit()

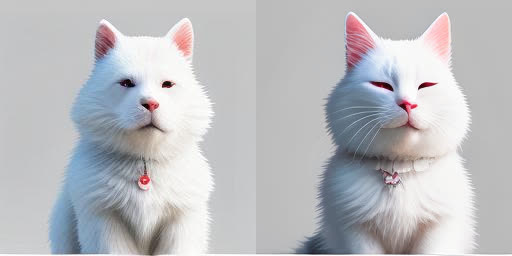

Output:

Explanation:

1. When performing text-to-image generation, you need to define a prompt describing the image you want. The prompt must be written in English, and the generated image will be saved to the path specified by save_path.
2. When performing image-to-image generation, you need to define a prompt describing the content you want to generateinit_image_path specifies the initial image,seed controls randomness in image generation

The output image will be saved to the path specified by save_path.
3. Since sdv1_5 depends on several large Python packages, importing it may take some time. If you want the application to enter the UI quickly during development, you can use importlib and threading to load the module in the background. Example:

from maix import time
import importlib, threading

class ModuleLoader():
    def __load_module(self):
        self.module = importlib.import_module(self.module_name)
        self.load_ok = True
        pass
    def __init__(self, module_name: str):
        self.module_name = module_name
        self.module = None
        self.load_ok = False
        self.t = threading.Thread(target=self.__load_module)
        self.t.start()
    def try_get_module(self, block = True):
        if self.load_ok:
            return self.module
        if block:
            while not self.load_ok:
                time.sleep_ms(100)
            return self.module
        else:
            return None

sdv1_5_loader = ModuleLoader("maix.sdv1_5")
while True:
    sdv1_5 = sdv1_5_loader.try_get_module(block=False)
    if sdv1_5 is not None:
        break
    time.sleep_ms(1000)
print(sdv1_5)

Running the Model with Command Line

Refer to launcher.py in the model directory to run the model.

Text-to-Image

cd lcm-lora-sdv1-5-maixcam2
python3 launcher.py --isize 256 --model_dir ax620e_models/ -o "ax620e_txt2img_axe.png" --prompt "a white dog"

Parameter description:

• --isize: Input image size, recommended value is 256
• --model_dir: Model directory
• -o: Output image filename
• --prompt: Description text; the model generates an image based on this description

Image-to-Image

cd lcm-lora-sdv1-5-maixcam2
python3 launcher.py --init_image ax620e_models/img2img-init.png --isize 256 --model_dir ax620e_models/ --seed 1 --prompt "Change to black clothes" -o "ax620e_img2img_axe.png"

Parameter description:

• --init_image: Initial image; the model generates a new image based on this
• --isize: Input image size, recommended value is 256
• --model_dir: Model directory
• --seed: Random seed, controls randomness during image generation
• -o: Output image filename
• --prompt: Description text; the model generates an image based on this description
