Basic usage

Use Dock motherboard

Connect Board

  • We can easily note the TX and RX pins marked on the bottom of motherboard, so we can use serial port of the ttl level wo communicate with computer(Both Tina and Debian os are OK).

  • For Tina OS we can use typeC cable to connect the core board with computer and use adb shell to communicate.

  • For Debian OS we can use keyboard and mouse to control the system.

Notes about Debian

It may run slow because of the speed of TF card.

The users name is root and password is licheepi

When using serial port connets board it always print kernel message, do following steps to stop it:

  • Edit /etc/rsyslog.conf by root and change *.emerg located in lht last line into #*.emerg in this file
  • Restart rsyslog service by this command /etc/init.d/rsyslog restart

Want to use terminal in GUI

  • Use command Alt+F2 to run "run", then input termit to open a terminal.

Light LED

After succeed login OS(Both Tina and Debian are OK), we can stat blink LED.

There is an LED beside the screw fixing pad on the core board, This can be found in the dimension drawing:

Click to see dimension drawing

And from the schematic we can know the led connects with PC0 pin, and we can figure out its siginal number is ('C'-'A')x32+0 = 2x32+0=64

We can also know the IO multiplexing table from pinmux-pins file

cat /sys/kernel/debug/pinctrl/2000000.pinctrl/pinmux-pins
pin 64 (PC0): device 2008000.ledc function ledc group PC0 #From this we know it connects with LED
pin 65 (PC1): UNCLAIMED
pin 66 (PC2): UNCLAIMED
pin 67 (PC3): UNCLAIMED
pin 68 (PC4): UNCLAIMED
pin 69 (PC5): UNCLAIMED
pin 70 (PC6): UNCLAIMED
pin 71 (PC7): UNCLAIMED

We export this led GPIO first:

echo 64 > /sys/class/gpio/export    #export GPIO64

Then we set this IO direction out, by which we can control its voltage level.

echo out>/sys/class/gpio/gpio64/direction #Set IO direction out
echo 1 > /sys/class/gpio/gpio64/value   #Set IO high voltage level
echo 0 > /sys/class/gpio/gpio64/value   #Set IO low  voltage level

This is the easiest way to control IO.

We should cancel export if we don't use this IO.

echo 64 > /sys/class/gpio/unexport    # cancel export GPIO64

Up to now we have succeeded Lighting led on RISC-V 64 D1.

You can also light on the serial RGB LED ws2812:

echo 255 > /sys/class/leds/sunxi_led0r/brightness #Red led on
echo 0 > /sys/class/leds/sunxi_led0r/brightness   #Red led off
echo 255 > /sys/class/leds/sunxi_led0g/brightness #Green led on
echo 0 > /sys/class/leds/sunxi_led0g/brightness   #Green led off
echo 255 > /sys/class/leds/sunxi_led0b/brightness #Blue led on
echo 0 > /sys/class/leds/sunxi_led0b/brightness   #Blue led off

Peripheral verification

Audio function

  • Check recording device

Use command arecord -l

root@MaixLinux:~# arecord -l
**** List of CAPTURE Hardware Devices ****
card 0: audiocodec [audiocodec], device 0: SUNXI-CODEC 2030000.codec-0 []
  Subdevices: 1/1
  Subdevice 0: subdevice 0
card 1: snddmic [snddmic], device 0: 2031000.dmic-dmic-hifi dmic-hifi-0 []
  Subdevices: 1/1
  Subdevice 0: subdevice 0
card 2: sndhdmi [sndhdmi], device 0: 2034000.daudio-audiohdmi-dai 20340a4.hdmiaudio-0 []
  Subdevices: 1/1
  Subdevice 0: subdevice 0
  • Check speaker device

Use command aplay -l

root@MaixLinux:~# aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: audiocodec [audiocodec], device 0: SUNXI-CODEC 2030000.codec-0 []
  Subdevices: 1/1
  Subdevice 0: subdevice 0
card 2: sndhdmi [sndhdmi], device 0: 2034000.daudio-audiohdmi-dai 20340a4.hdmiaudio-0 []
  Subdevices: 1/1
  Subdevice 0: subdevice 0

Play recording:

arecord -D hw:1,0 -f S16_LE -t wav -d 3 t.wav     #Recording
aplay -D hw:0,0 t.wav                             #Play recording

Besides, we can adjust volume by alsamixer application

Click to see alsamixer
┌────────────────────────────── AlsaMixer v1.2.4 ──────────────────────────────┐
│ Card: audiocodec                                     F1:  Help               │
│ Chip:                                                F2:  System information │
│ View: F3:[Playback] F4: Capture  F5: All             F6:  Select sound card  │
│ Item: Headphone [dB gain: -24.00]                    Esc: Exit               │
│                                                                              │
│     ┌──┐                                                           ┌──┐      │
│     │  │                                                           │  │      │
│     │  │                                                           │  │      │
│     │  │                                                           │  │      →
│     │  │                                                           │  │      →
│     │  │                                                           │▒▒│      →
│     │  │                                                           │▒▒│      →
│     │  │                                                           │▒▒│      →
│     │  │                                                           │▒▒│      →
│     │▒▒│                                                           │▒▒│      →
│     │▒▒│                                                           │▒▒│      │
│     │▒▒│                                                           │▒▒│      │
│     ├──┤     ┌──┐     ┌──┐     Off      ┌──┐     ┌──┐     ┌──┐     └──┘      │
│     │MM│     │MM│     │MM│              │MM│     │MM│     │MM│               │
│     └──┘     └──┘     └──┘              └──┘     └──┘     └──┘               │
│      25                                                             63       │
│  <Headphon>FMINL ga FMINR ga ADC1 ADC ADC1 Inp ADC1 Inp ADC1 Inp ADC1 vol    │

USB Function

Default kernel incorporates driver for external USB flash disk.

After Plug in the USB flash disk, you can use fdisk -l command to see the new /dev/sda device

If the USB flash disk has not been formatted, you can use mkfs.vfat command to format the USB disk, then mount it.

Wireless network

Use Tina OS

LicheeRV bottom board is equipped with XR829 or RTL8723BS wifi module, can connect network by following commands:

Add following content into wpa_supplicant.conf file located in /etc/wifi/ to config wifi


Then restart board(Use command reboot), use these two commands ifconfig wlan0 up; udhcpc -iwlan0 to connect wifi.
Then we can use ssh to remote login or use scp to transfer files by network.

debian OS

It's not supported to use command line to connect network

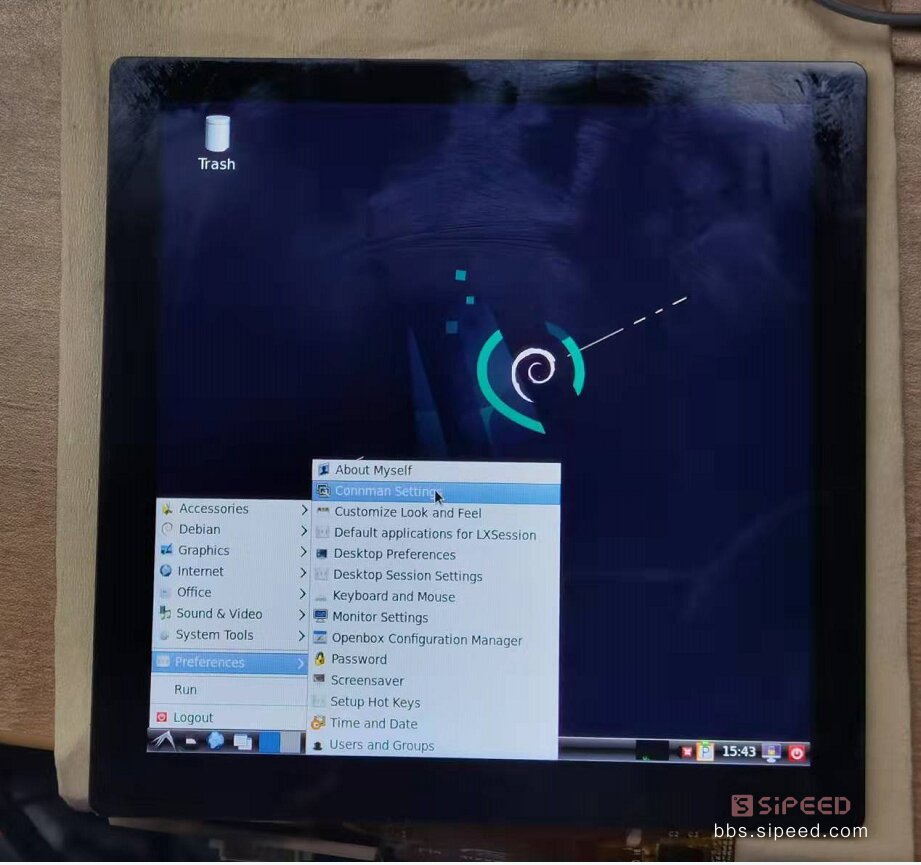

Click System menu -> Preferences -> Connman Settings,Enable Network Settings ,check whether the interface in the network property is wlan0. Double click the network name and input WiFi password to connect wifi.

After succeeding connecting network, we can see the network IP

Display and touch

LicheeRV supports following screen:

  • SPI screen 1.14 inch(TODO)
  • RGB screen 4.3 inch 480x272;5.0 inch 800x480;
  • RGB+SPI screen 4.0 inch 480x480(st7701s); 4.0 inch 720x720(nv3052c)
  • MIPI screen 8.0 inch 1280x720(ILI9881C)

We can use following commands to view screen driver information

The following message will be different due to different mirror system

cat /sys/class/disp/disp/attr/sys

screen 0:
de_rate 300000000 hz, ref_fps:60
mgr0: 480x480 fmt[rgb] cs[0x204] range[full] eotf[0x4] bits[8bits] err[0] force_sync[0] unblank direct_show[false] iommu[1]
dmabuf: cache[0] cache max[0] umap skip[0] overflow[0]
    lcd output	backlight( 50)	fps:59.5	esd level(0)	freq(60)	pos(0)	reset(0)	 480x 480
    err:0	skip:184	irq:230715	vsync:0	vsync_skip:0
   BUF    enable ch[1] lyr[0] z[16] prem[N] a[globl 255] fmt[  0] fb[ 480, 480; 480, 480; 480, 480] crop[   0,   0, 480, 480] frame[   0,   0, 480, 480] addr[ffe00000,       0,       0] flags[0x       0] trd[0,0]

Test screen color bar :echo 1 > /sys/class/disp/disp/attr/colorbar

Play video

Now we can play BadApple On licheeRV Click me to download video

FFmpeg has been built in Tina image, which is a powerful multimedia library, can be used for screen recording or play video.

Recording command:

ffmpeg -f fbdev -framerate 10 -i /dev/fb0 record.avi

Play command (They are play audio from speaker and HDMI)

ffmpeg -i /mnt/UDISK/badapple_640480_xvid.mp4 -pix_fmt bgra -f fbdev /dev/fb0 -f alsa hw:0,0  ## speaker
ffmpeg -i /mnt/UDISK/badapple_640480_xvid.mp4 -pix_fmt bgra -f fbdev /dev/fb0 -f alsa hw:2,0  ## hdmi

Because it's decoded by cpu, so the Maximum screen resolution test is 750x540 , and it will run slower if play higher screen resolution.

Microphone array(For debian OS only)

Connect board with microphone array (make sure not reverse the cable or not reverse the pin ), then run sudo ./micarr_0609 in terminal.

If you need redevelop about microphone array, contact with

86 Panel

If your device display incorrectly, go to Questions&Answers to fix this.

Here we just show simple usage about this board, the usage for Dock also can be used for 86Panel (Except Light LED by PC0 pins)

For tina os there is no GUI, so we use debian as example.

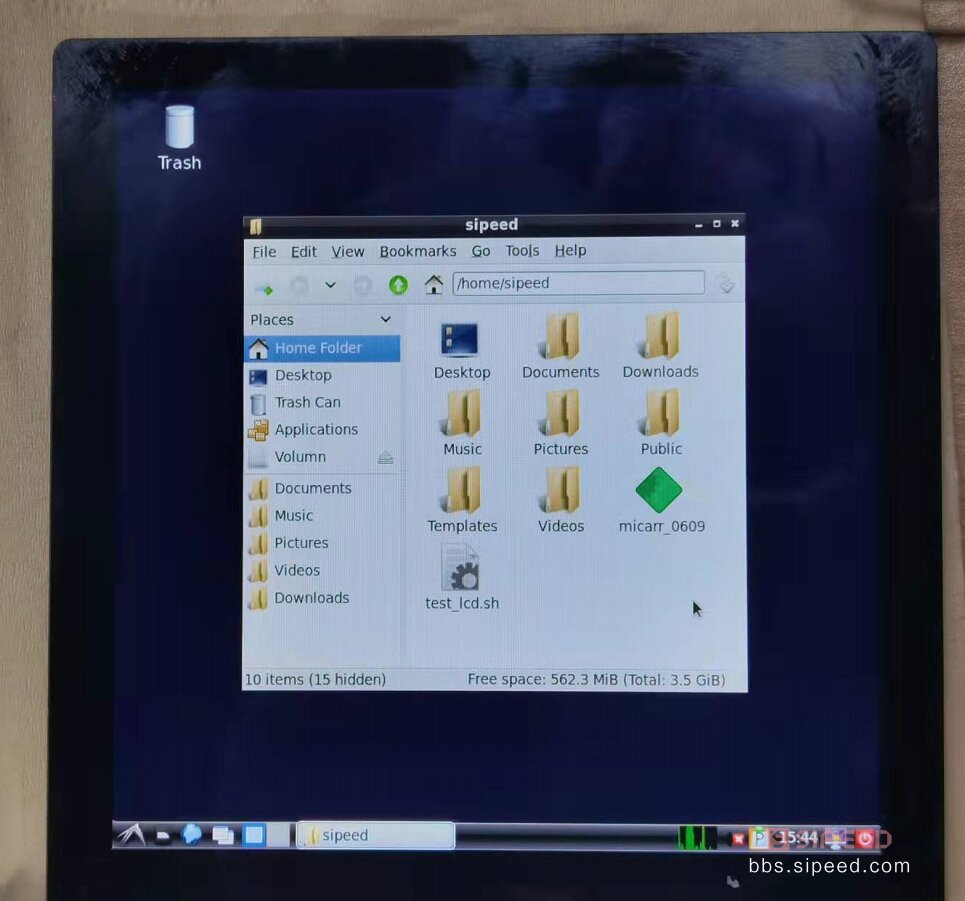

After finishing burning debian OS, insert mirror card into the board, wait about 2 minutes to see the desktop displays on the screen, during which you can see log form uart port.


Username sipeed and Password licheepi, use mouse and keyboard to operate it.

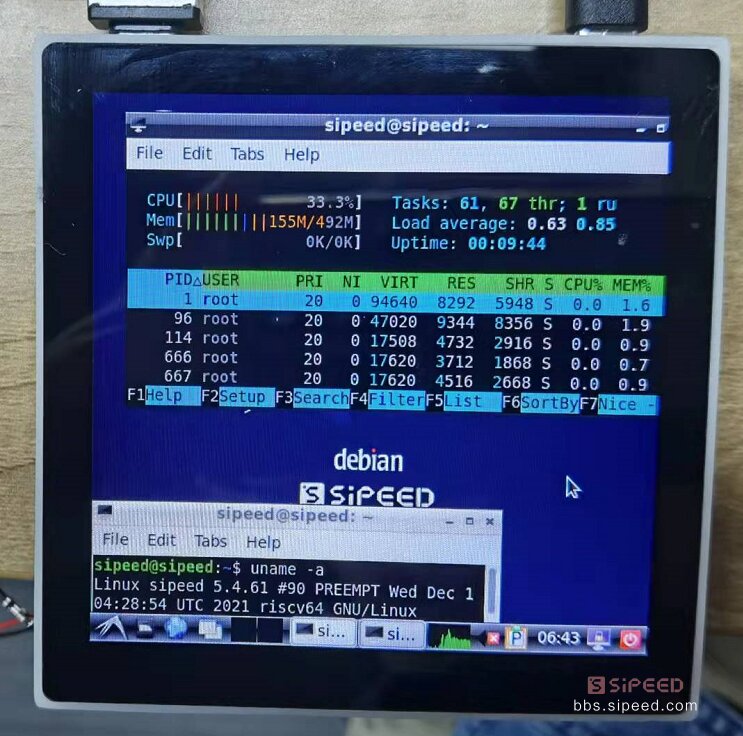

Then we can de some basic operations.

  • Use Alt+F2 to run "run", then input termit to new a terminal command line.

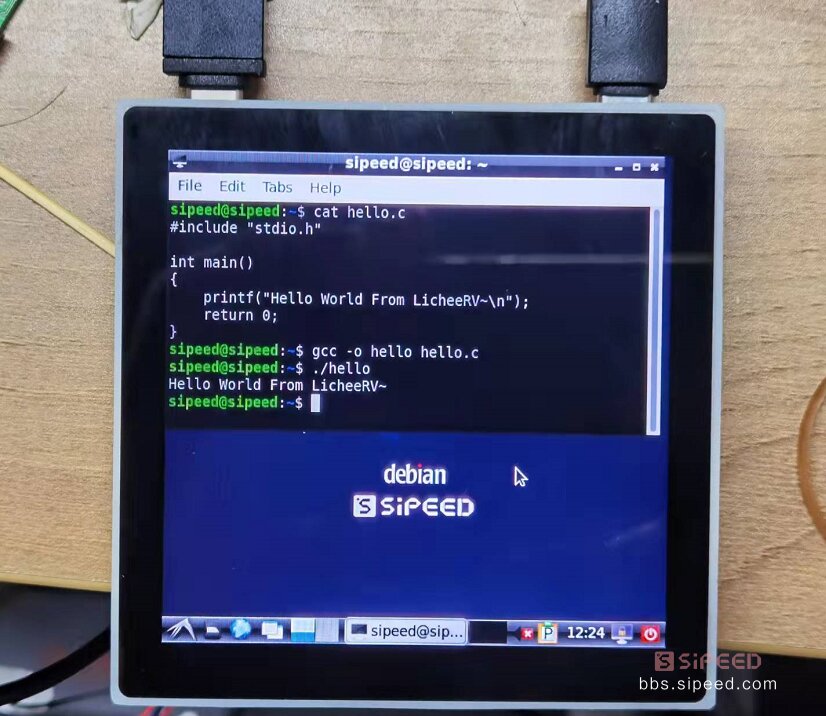

Let's try to compile and run hello world


We also provide 720P 720p high-definition screen, you can try this if you have enough money。

When you use this you need to overwrite the board-level configuration to set it in correct configurations to display.Click here to see more details.



Light LED

Because LED on the core board is reused with the 86Panel motherboard peripheral, We can't light it directly.

After connecting the LED with the reserved IO pad, we can blink it by the same ways how we blink by dock board.

Connect Internet

Connect by Cable

86 Panel supports 100 Megabit networks. And use following commands to connect to Internet after using the network cable included in the package to connect to the subnet port on the board.

ifconfig eth0 up
udhcpc -ieth0

Wireless network

You can refer to Dock wireless network


Same as operating dock motherboard.

Touch screen test

Only tina OS incorporates touch demo

IF you buy 86panel package, just use command ts_test to test touch screen

There is a bug with touch-driver,that is when you remove your finger during test, the cursor stops blink while the terminal still print messages

root@MaixLinux:/# ts
ts_calibrate  ts_harvest    ts_print_mt   ts_test       ts_verify
ts_finddev    ts_print      ts_print_raw  ts_test_mt    tshowimg


To make it easy for user to develop custom function, Sipeed provide bsp docker image of LicheeRV.

Download link:Mega netdisk

After finishing downloading docker file, decompress into tar file.

gzip -d licheerv_d1_compile.tar.gz                                #Decompress into tar file
docker import licheerv_d1_compile.tar licheerv_d1_compile:latest  #import docker image

After succeed running it's suggested to relogin and username nihao password sipeed123

sudo docker run -it licheerv_d1_compile:latest /bin/bash # Start D1 compile docker image in interactive mode
login # change user

You can use following commands to finish compiling.

cd ~/sdk/tina-d1-open_new/
source build/
lunch   # choose 1
make menuconfig  # unchoose alsa-plugin, otherwise it fail to compile
# alsa-plugins path in menuconfig
#└── Libraries
#    └── alsa-plugins
make -j8

There are some new dts file in this SDK, you can use them if necessary
They are in device/config/chips/d1/configs/nezha/board_xxx.dts

Other SDK developing manual can refer to relevant documents on the Allwinner development platform

If you need other SDK please visit allwinner official website:
