Tang Primer 20K

Ongoing editing.

We have 2 ext-board for Tang Primer 20K, the Dock and the Lite. Here I will tell the start of them

1. Dock ext-board#

1.1. Matters need attention#

Here are matters need attention, to avoid spending much time dealing with trouble and fail at last.

1.1.1. Enable Core Board#

For 20K Dock kits, it's necessary to enable the core board before using debugger debug the chip, just put the 1 switch on the dip switch down, otherwise LED0 and LED1 are on and core board dose not work.

Enable Core Board	Disable state	Additional comments
		When disabled, the LDE0 and LED1 is on, and core board doesn't work.

1.1.2. Device not work#

We have inserted the Core Board into Dock ext-board before delivery, but sometimes we need remove the Core board for some reasons, and after reinserting the Core Board into Dock ext-board, they don't work.

The correct connection steps is to insert the Core board into the ext-board at an Angle roughly as shown in the left figure below. Make sure that the Core board inserted diagonally from above is in uniform contact with the ext-board, which can be judged by the degree of uniformity of the exposed gold finger.

Then gently press the tilted end, you can hear a sound of the Core board being fixed by the ext-board slot.

If you find it difficult to press the tilted end, you can try to polish both sides of the Core board slightly to eliminate the size error caused by the production process.

Just polish the two sides of the red box in the figure above to reduce the difficulty of inserting.

1.1.3. Hardware version introduction#

For Dock ext-board, we can know the version of our board from the mark in the following picture.

From the figure we can know the version of this board is V3708.

Here are their errors.

V3708#

LED2 and LED3 are marked wrong, thay should be：

1.2. Start to use#

For Dock ext-board, the following things can be done with default firmware.

• Press key S0, reset the RGB screen, camera, HDMI signal. And LED3, LED4, LED5 are on.
• Press key S0 to key S5, the state of LED0, lED1, LED2 changes.
• Connect OV5640 camera and 4.3 inch RGB screen with Dock ext-board (Make sure power is off while connecting), the screen display the picture captured by camera. If the screen displays not well, try to press key S0, this will synchronize the camera picture and screen content.

1.3. Start coding#

Blink a led

1.4. Questions#

Visit Questions for more solvements

2. Lite ext-board#

2.1. Hardware version introduction#

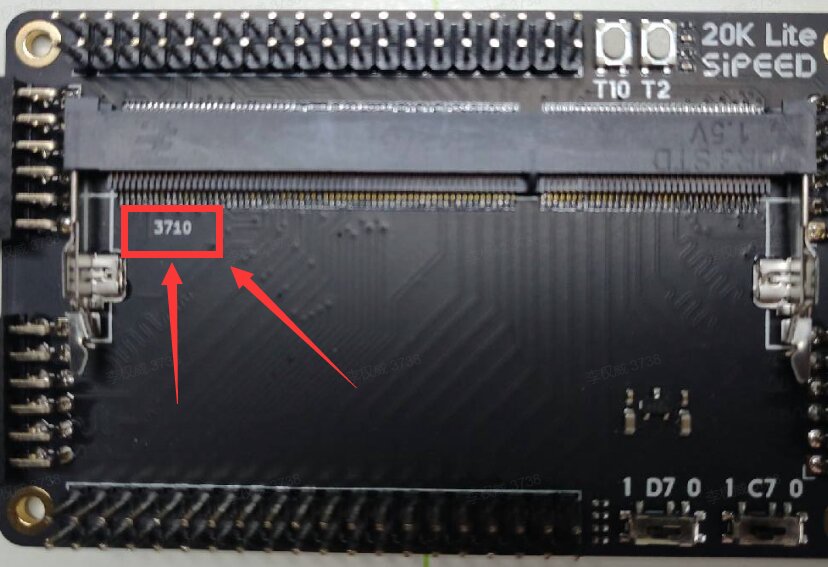

For Lite ext-board，we can know the version of our board from the mark in the following picture.

From the figure we can know the version of this board is 3710.

Here are their errors.

2.1.1. 3710#

The mask between R8 and P9 is P8. Refer to the left top of the right picture.

2.2. Start coding#

点一个灯

2.3. Questions#

Visit Questions for more solvements
