The Tang Primer at a Glance

Tang Primer at a Glance

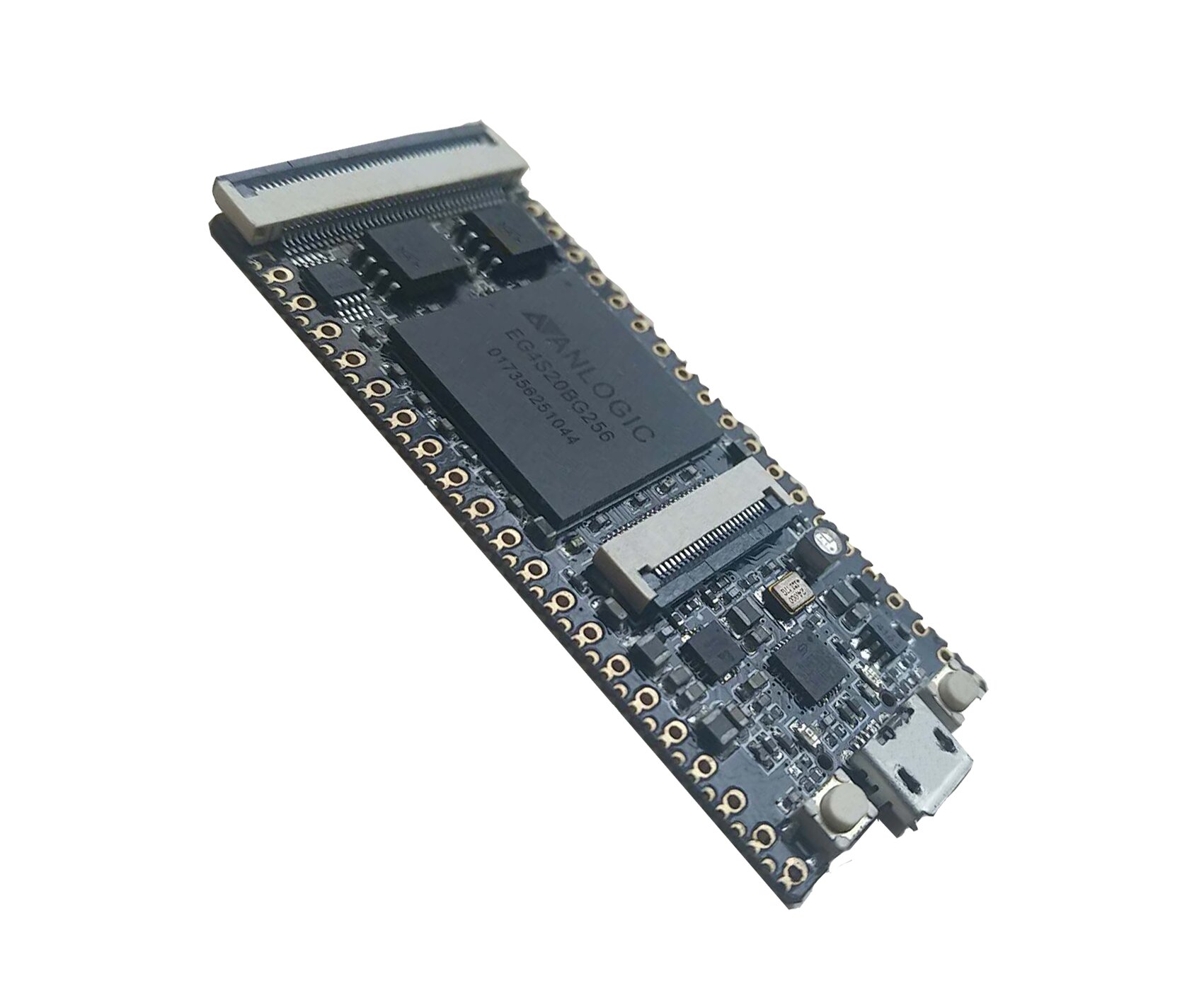

Tang Primer uses Anlogic's EG4S20 as the core unit, 20K logic unit (LUT4/LUT5 hybrid architecture), approximately 130KB SRAM, built-in 32bit bit width 64MBit SDRAM, rich LVDS pin, built-in 12-bit 1MSPS ADC This provides unlimited possibilities for Tang Primer:

Tang Primer features

  • FPC40P socket, can be connected to RGB LCD, VGA adapter board, high speed DAC module.
  • FPC24P socket, can be connected to DVP camera, high speed ADC module.
  • Resistive touch screen controller for I2C interface, used with RGB LCD.
  • 3-channel DCDC power supply chip, stable and efficient power supply, independent adjustment of Bank0 IO level.
  • FPGA configuration Flash, 8Mbit User Flash, nor/nand optional.
  • Onboard FPGA JTAG Download Debugger.
  • Onboard RGB LED
  • The adjacent pins LVDS are drawn in the same length, and 8 GCLKs are taken out, and 8 ADCs are all taken out.
  • The double row pin spacing is 900 mils and is compatible with breadboard development.
  • The half hole leads to an additional 40 IO and the entire board leads to 130+ IO.

Pinouts

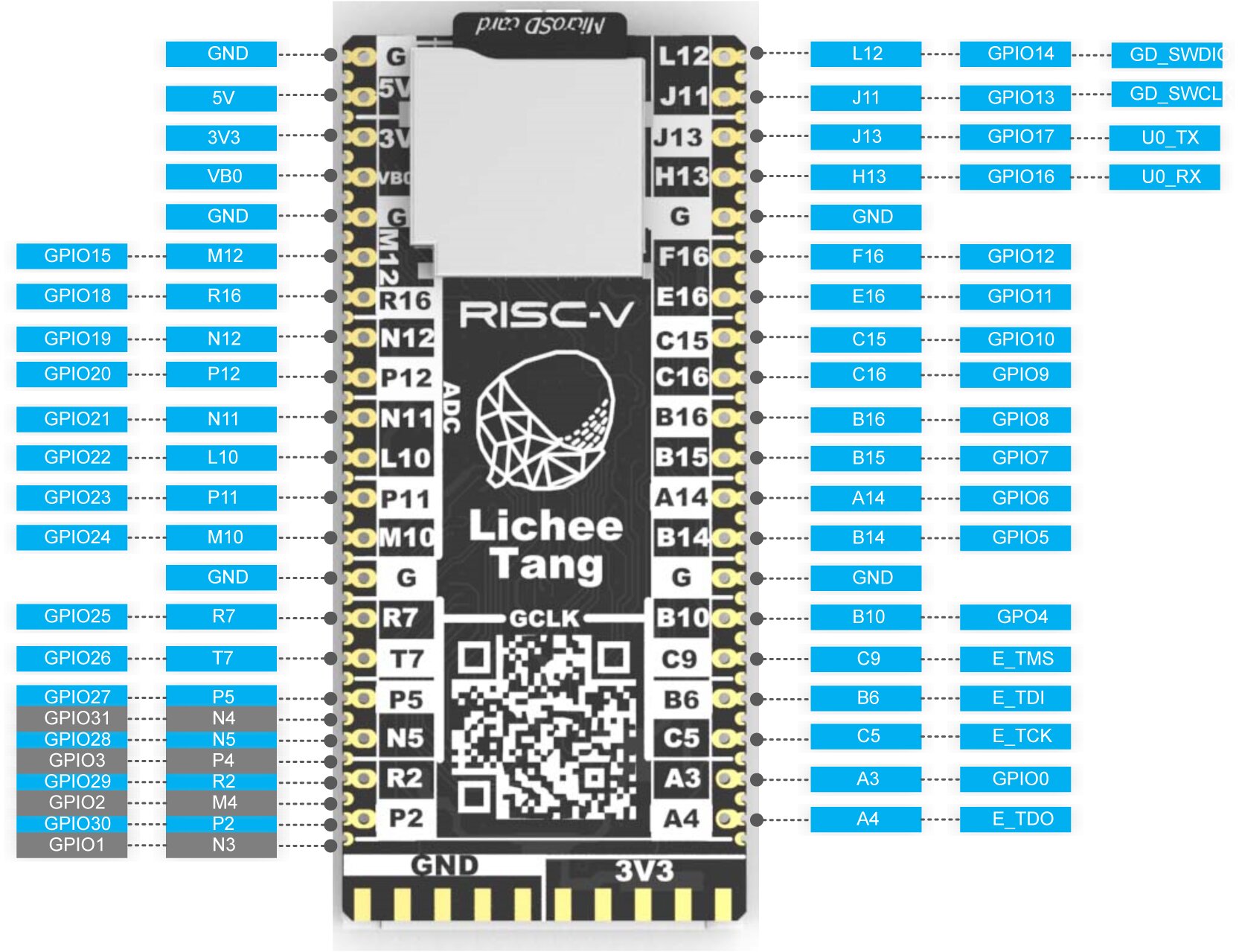

Pinout for New Tang Primer Board.

Tang Primer at a Glance

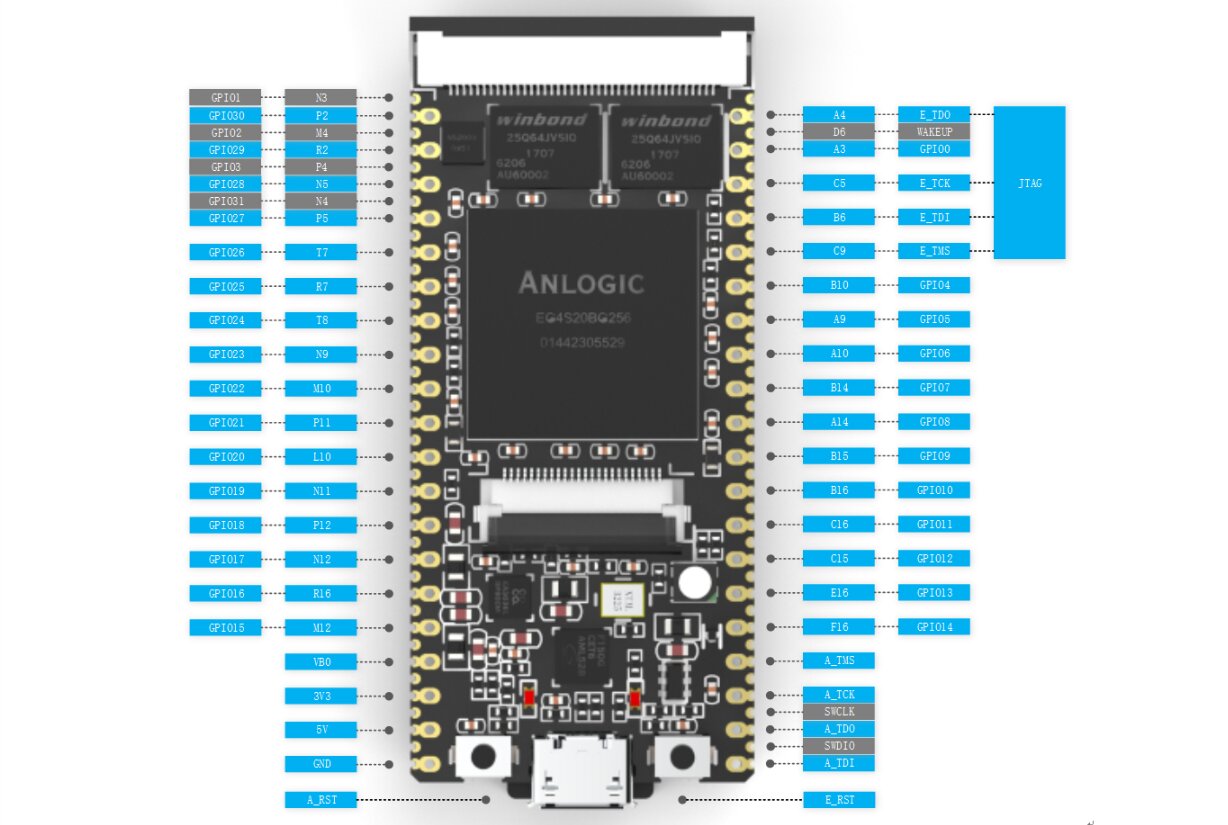

Pinout for Old Tang Primer Board.

Tang Primer at a Glance

Resources

Attachments:

Besides, its development environment IDE TD(Tang Dynasty) can be downloaded from following sites
