Errata for Tang Console

2025-04-22
Update history
Date Version Author Update content
2025-04-22 v0.1 Serika
  • Create document

1. Errata Record#

1.1. PCB Version: 32001#

Click for details

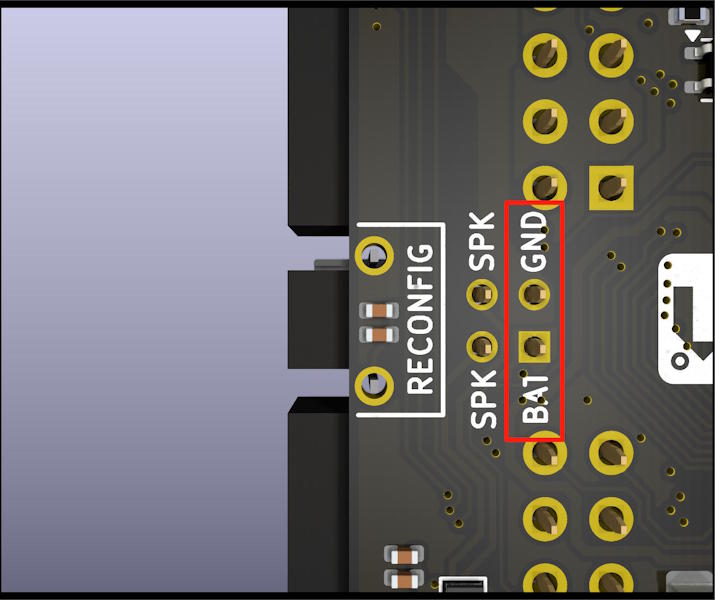

  1. BOT side The silkscreen markings on the battery connector are wrong. The markings GND and BAT in the figure below should be swapped (the markings on the TOP side are correct);

    flash_mode

1.2. PCB Version: 32001B#

Click for details

  1. BOT side The silkscreen markings on the battery connector are wrong. The markings GND and BAT in the figure below should be swapped (the markings on the TOP side are correct);

    flash_mode

1.3. PCB Version: 32001C#

Click for details

  1. BOT side The silkscreen markings on the battery connector are wrong. The markings GND and BAT in the figure below should be swapped (the markings on the TOP side are correct);

    flash_mode

2. Update Record#

2.1. PCB Version: 32001C#

TBD
